A gantry crane stands entirely on its own legs and moves over rails on the floor, independently of the building. A semi-gantry crane combines this principle: one side runs on floor-mounted rails, the other side runs along the building structure. This makes the semi-gantry crane ideal for efficient use of space along walls or passages.
STANDAERT ROLBRUGGEN
What is a gantry crane or semi-gantry crane?

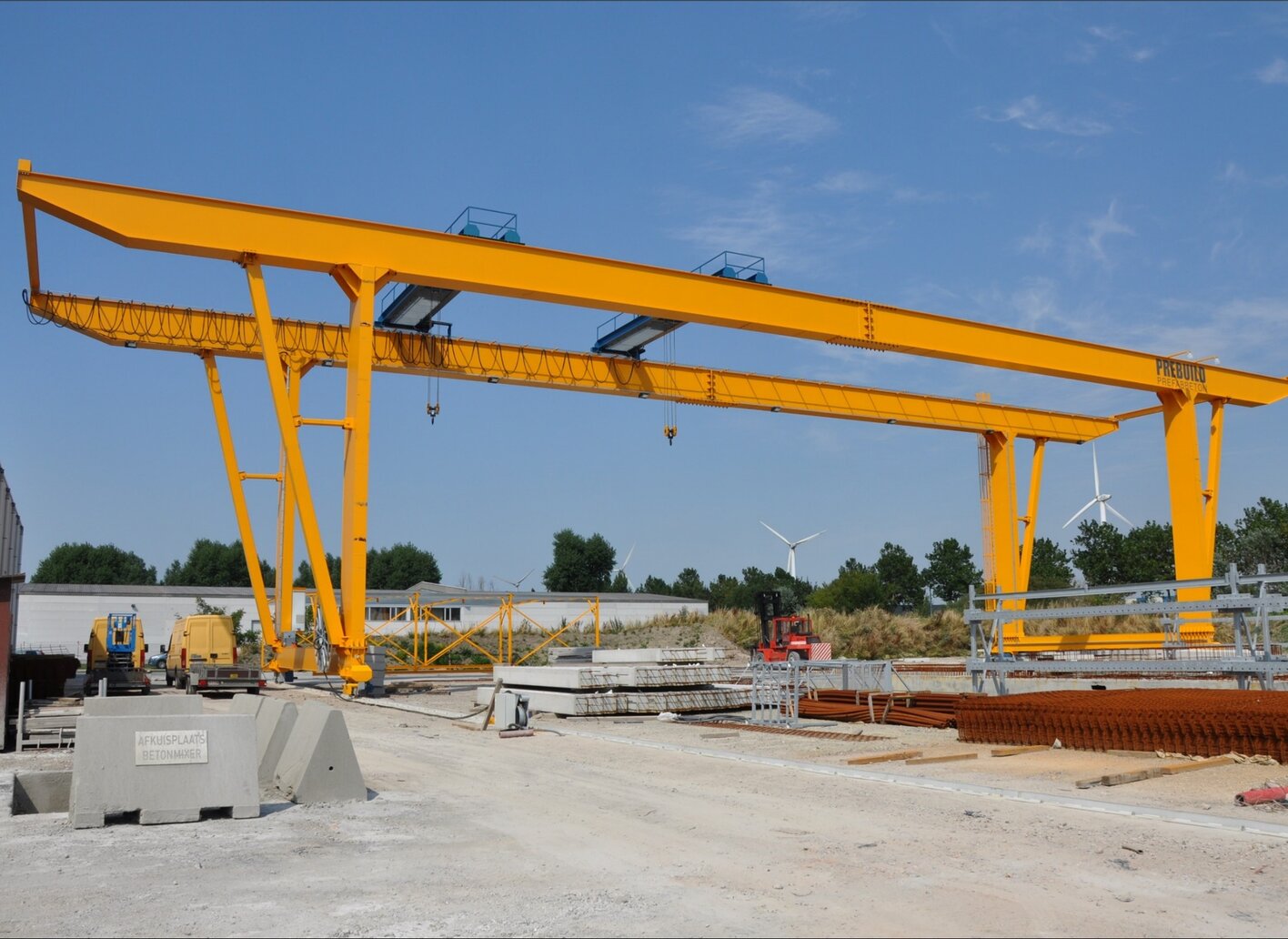

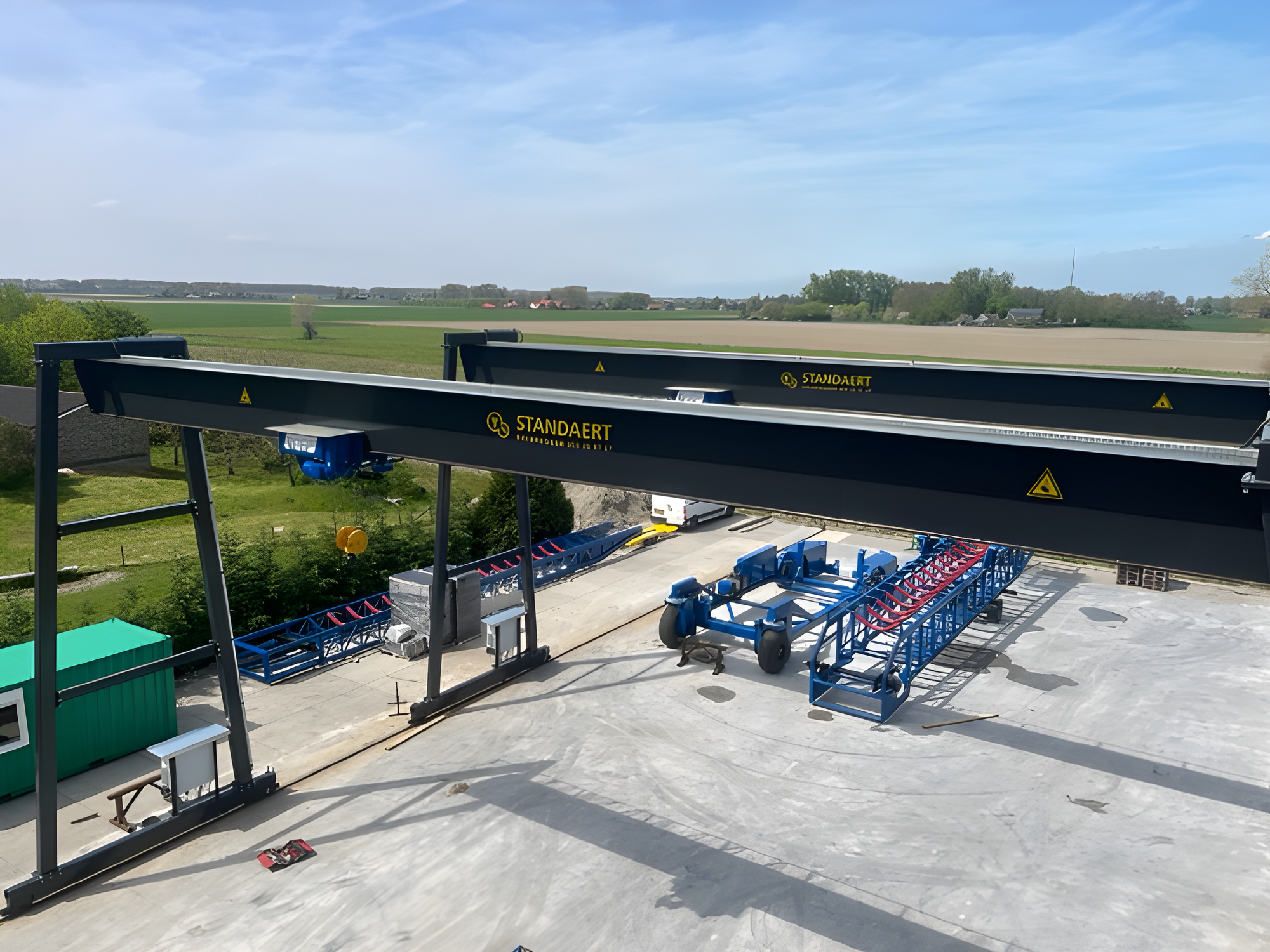

A gantry crane is an industrial lifting installation that stands on its own legs and moves over rails on the floor. In contrast to an overhead crane, this crane is not dependent on the building structure, making it ideal for outdoor use or in halls without a suitable supporting structure.

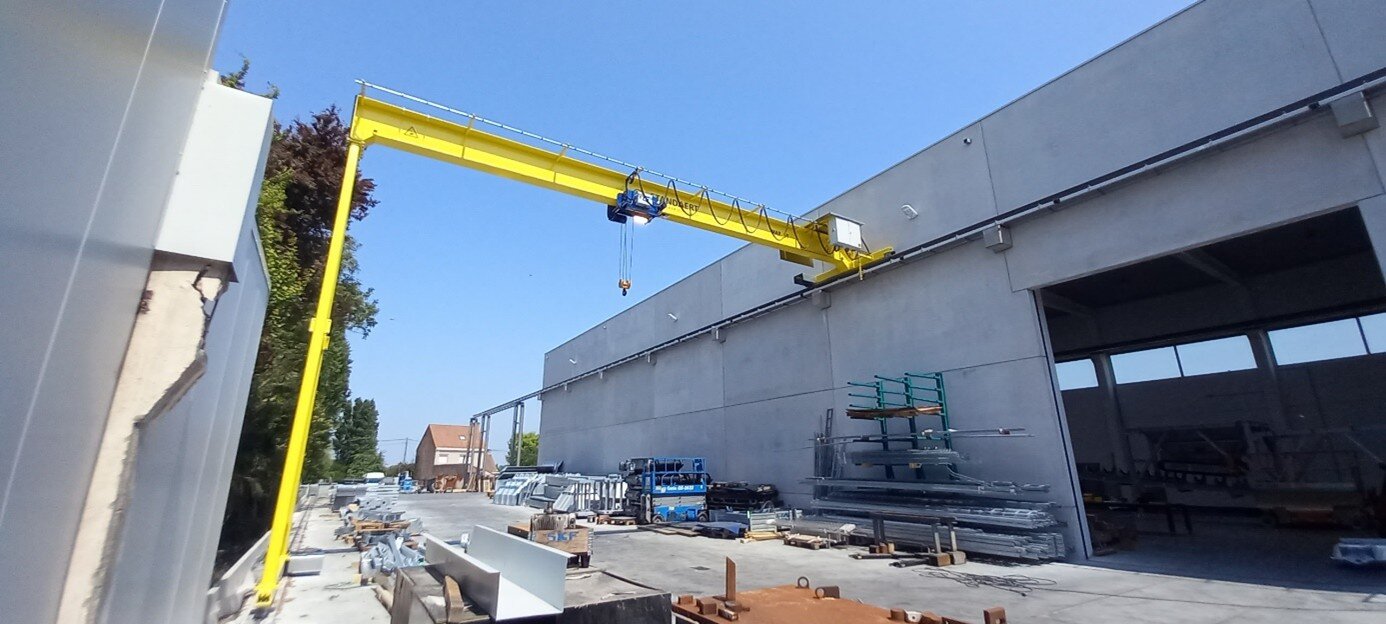

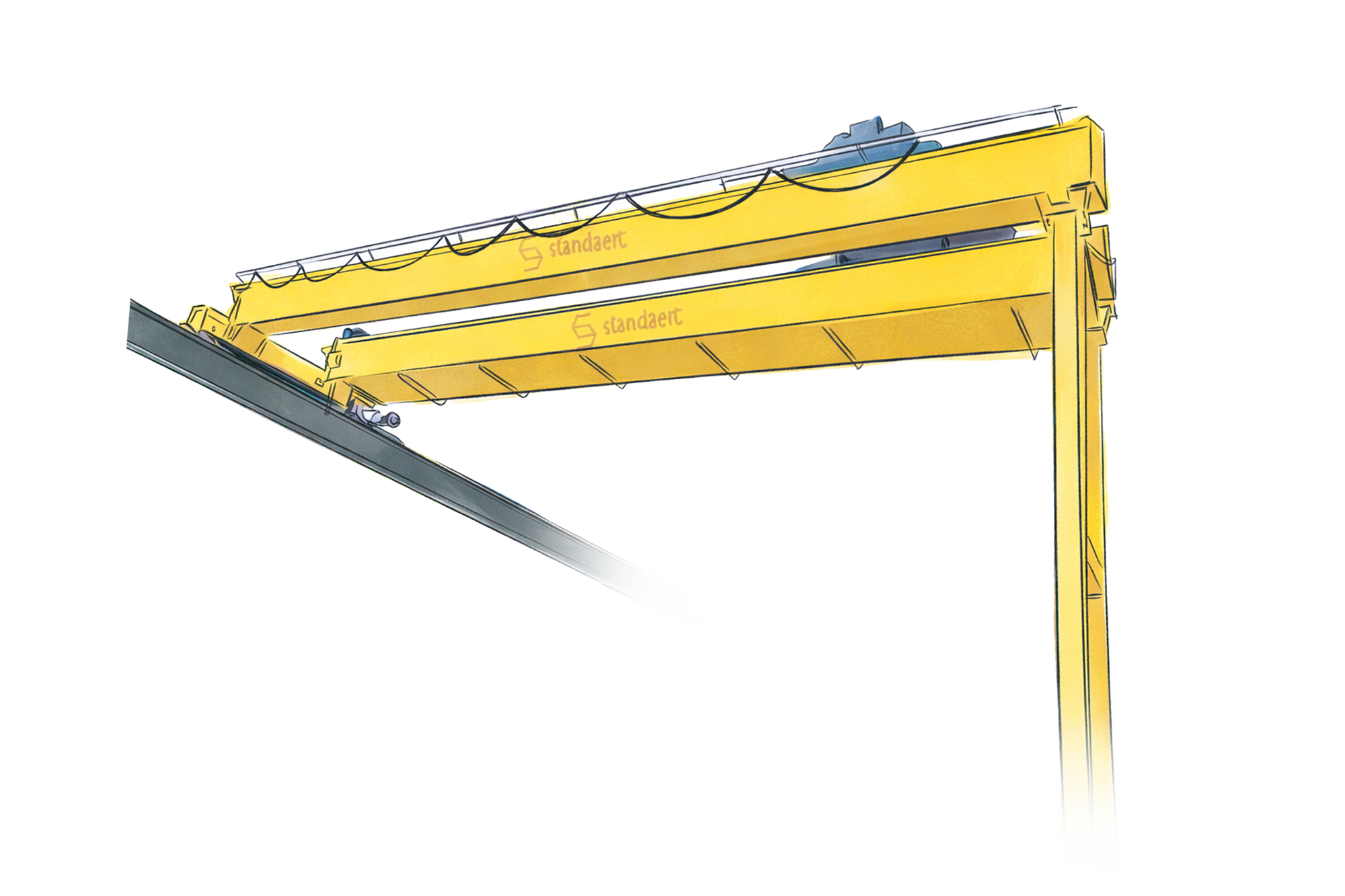

A semi-gantry crane is a combination of an overhead crane and a gantry crane: one side runs on a rail on the floor or directly on the concrete floor slab, while the other side runs on a higher rail attached to the building structure. This makes it possible to use space efficiently, for example along a wall or passage.
Gantry cranes are often used for heavy loads, large spans and applications where flexibility and independence from the structure are important.
TECHNICAL INFORMATION
Specifications
Lifting capacity
- From 1 tonne to 100 tonnes or more, depending on the configuration and application.
Span
- Up to 40 metres and more, depending on the configuration.
Configuration
- Single girder gantry crane for standard applications
- Double girder gantry crane for heavy loads and large spans
- Semi-gantry crane: combination of floor and overhead guidance
- Suitable for indoor and outdoor applications
Drive & control
- Manual travel for smaller applications
- Electric drive for larger loads and intensive use
- Frequency control for controlled and smooth movements
- Control via radio control or pendant control
- Optional with remote diagnostics and load display
Safety & standards
- CE marked in accordance with the European Machinery Directive
- Commissioning carried out by a recognised inspection body via Standaert Service
- Wind protection (for outdoor applications)
Onderhoud & service
- Own intervention team
- Maintenance tailored to your needs
- Spare parts quickly available from our own stock
Typical applications
- Production environments without a supporting structure for overhead cranes
- Outdoor applications such as storage yards and loading zones
- Steel construction and metal processing
- Precast concrete and heavy industry
- Workshops requiring flexible and movable lifting solutions
Lift your production to a higher level.
Start your crane project now!
FAQ
Veel gestelde vragen
Absolutely. Gantry cranes are particularly suitable for outdoor storage and loading zones, as they are completely independent of a building structure. They are available in single and double girder configurations, with lifting capacities from 1 to more than 100 tonnes and spans up to 40 metres and more.
Gantry cranes can be driven manually or electrically, with frequency control for smooth movements. Control via radio control or pendant control is standard. Each installation is CE marked and is commissioned via a recognised inspection body. Optional remote diagnostics and load display are available.
